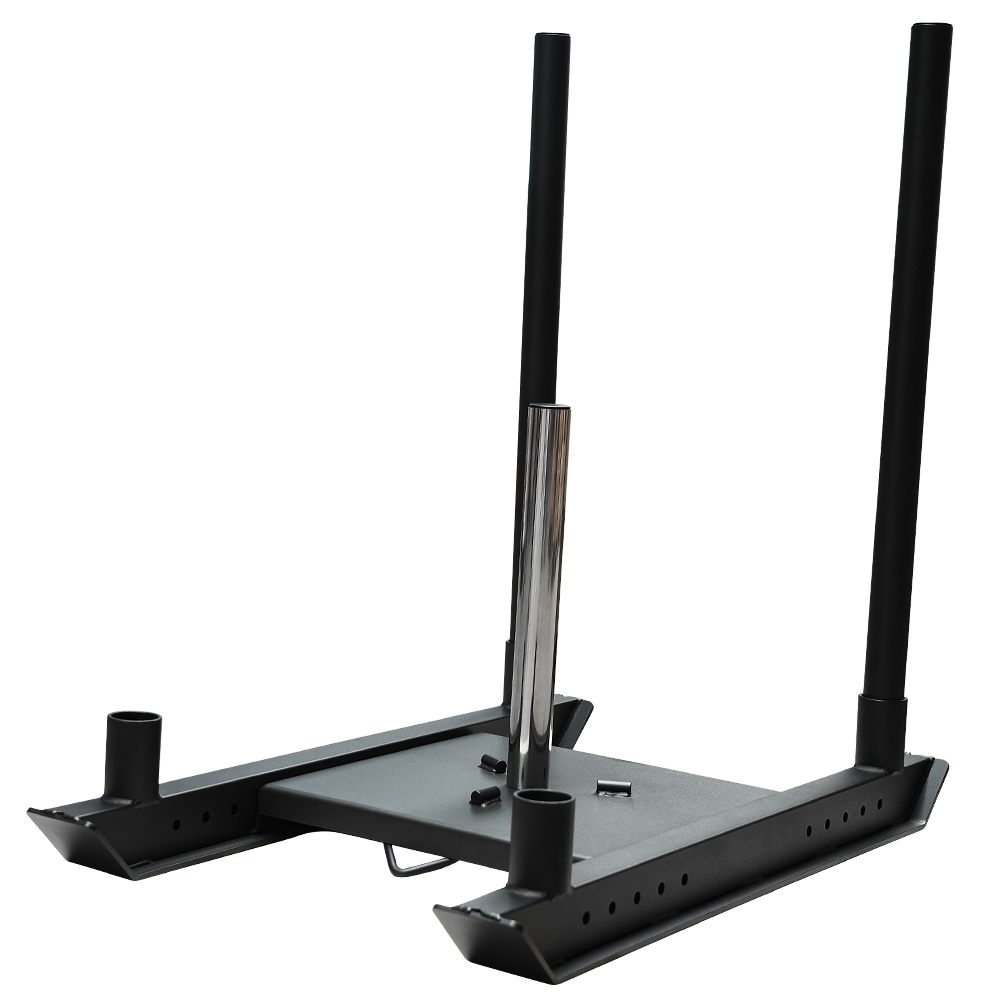

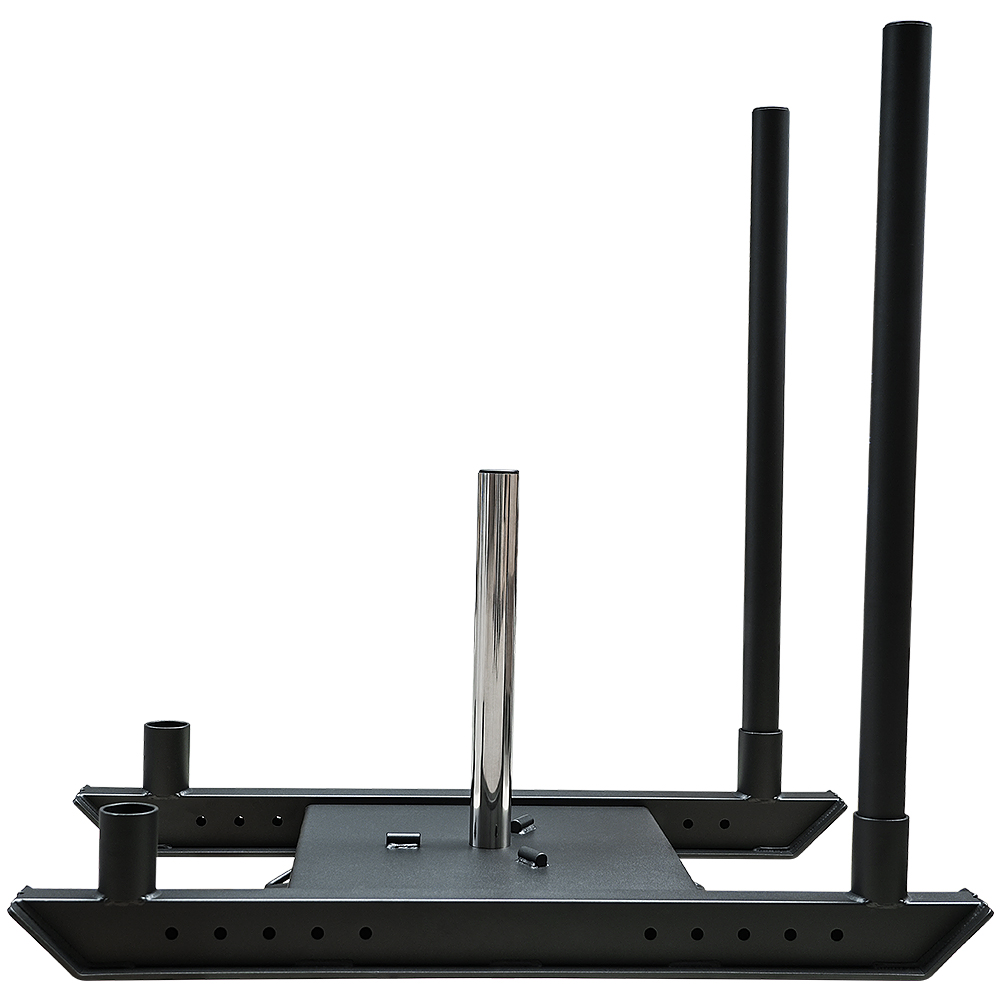

Weighted Strength Sled

A strength sled's lifespan isn't determined by its paint job—it's determined by its welds. This weighted strength sled separates itself through details that matter: 6mm steel plate thickness, 450mm anti-tip base width, 360° full welding process, and a 3mm (11ga) 75x50mm support structure. Below are the complete specifications and in-depth analysis.

Key Specifications at a Glance

6mm Steel Plate: Not a Gimmick, a Baseline

Most sleds on the market use 3-4mm steel for the loading surface. This sled uses 6mm. What's the real difference? Thin steel plates develop permanent dents under frequent dragging or heavy impact, especially where weight plates make contact. A 6mm plate provides significantly higher impact resistance—even after repeatedly loading 20kg plates day after day, the deck stays flat. In high-frequency commercial environments with dozens of daily users, this thickness directly determines whether the sled's lifespan is measured in months or years.

450mm Anti-Tip Base: Wide Means Stable

The logic behind anti-tip design is simple: more ground contact area means a longer lever arm against tipping. This sled's base width reaches 450mm—roughly 30% wider than the common 300-350mm bases found on competitor products. What does this mean in practice? When you pull from an angle, stop suddenly on turf, or an athlete's force direction shifts slightly off-center, the 450mm wide base dramatically raises the tipping threshold. Combined with dual flared wings, the sled stays planted even when the pulling force is significantly off-center.

3mm (11ga) 75x50mm Support Structure

The support frame is often the hidden cost that gets cut first. This sled uses 3mm wall thickness (11 gauge) 75x50mm rectangular steel tubing as its main support structure. Compared to common 2mm or 2.5mm walls, 3mm tubing delivers a fundamentally different level of bending and torsional rigidity. Thin walls gradually develop micro-deformations during lateral dragging, which accumulate over time and result in the sled "drifting" or the base sitting unevenly. The 3mm thick wall combined with the large 75x50mm cross-section maintains the original geometry even after repeated off-axis pulls.

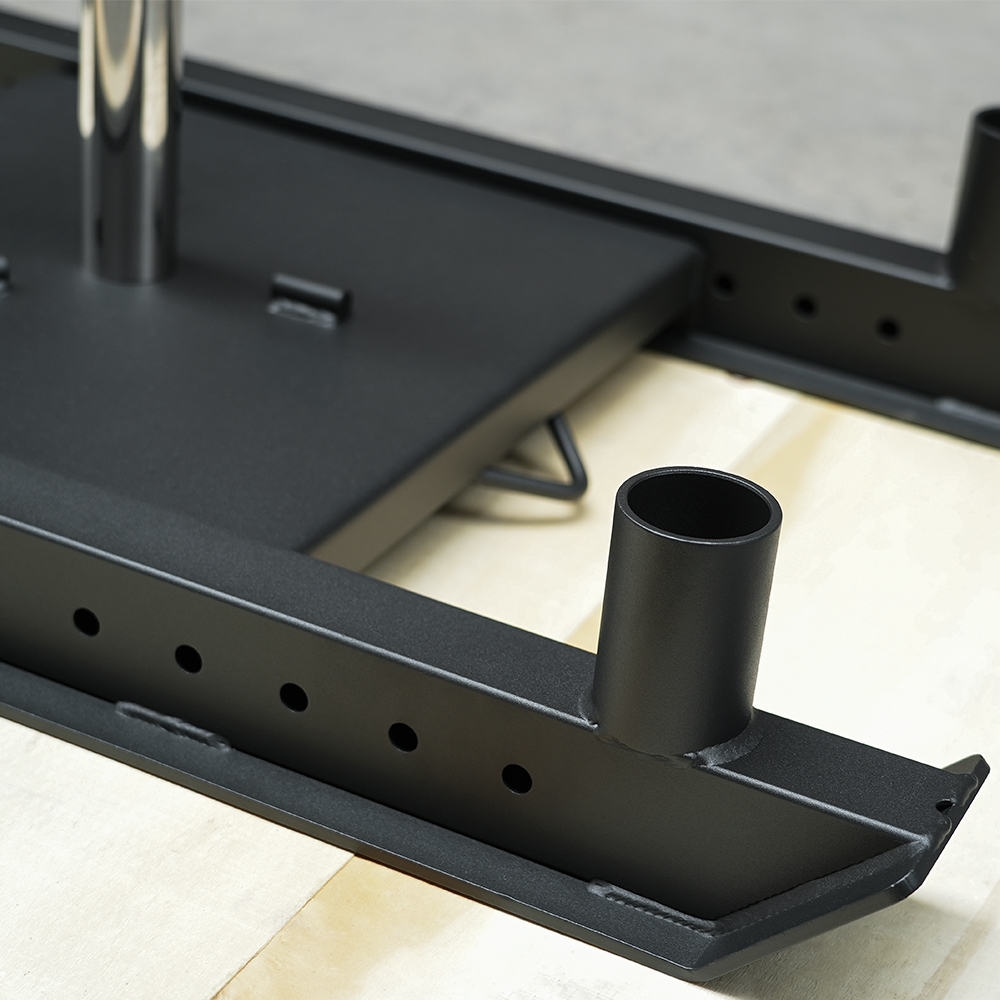

360° Full Welding: The Dividing Line vs. Competitors

The image comparison is clear. Competitor products use spot welding or stitch welding—only a few key points are welded, with the rest relying on the metal's natural tension. The consequence? Under repeated impact and vibration, non-continuous weld points create stress concentrations, eventually tearing from the edges of each weld. This sled uses 360° full welding, meaning every joint is welded continuously along the entire seam. Full welding isn't about appearance—it's about creating a continuous load transfer path. Stress distributes evenly across the full weld loop with no weak points. This is why full-welded structures typically last 3-5 times longer than spot-welded structures in commercial environments.

Multi-Functional Towing Hitch: More Than Just Pulling

The front is equipped with a multi-functional towing hitch—not just a simple loop, but a standardized interface compatible with multiple accessories. This sled does more than backward drags. Attach a push handle and it becomes a resisted push sled. Attach resistance bands for eccentric overload training. Attach a tow rope for team-based synchronized dragging. One interface unlocks multiple training modes. For private training studios with limited space, this means one piece of equipment covers what would otherwise require multiple dedicated tools.

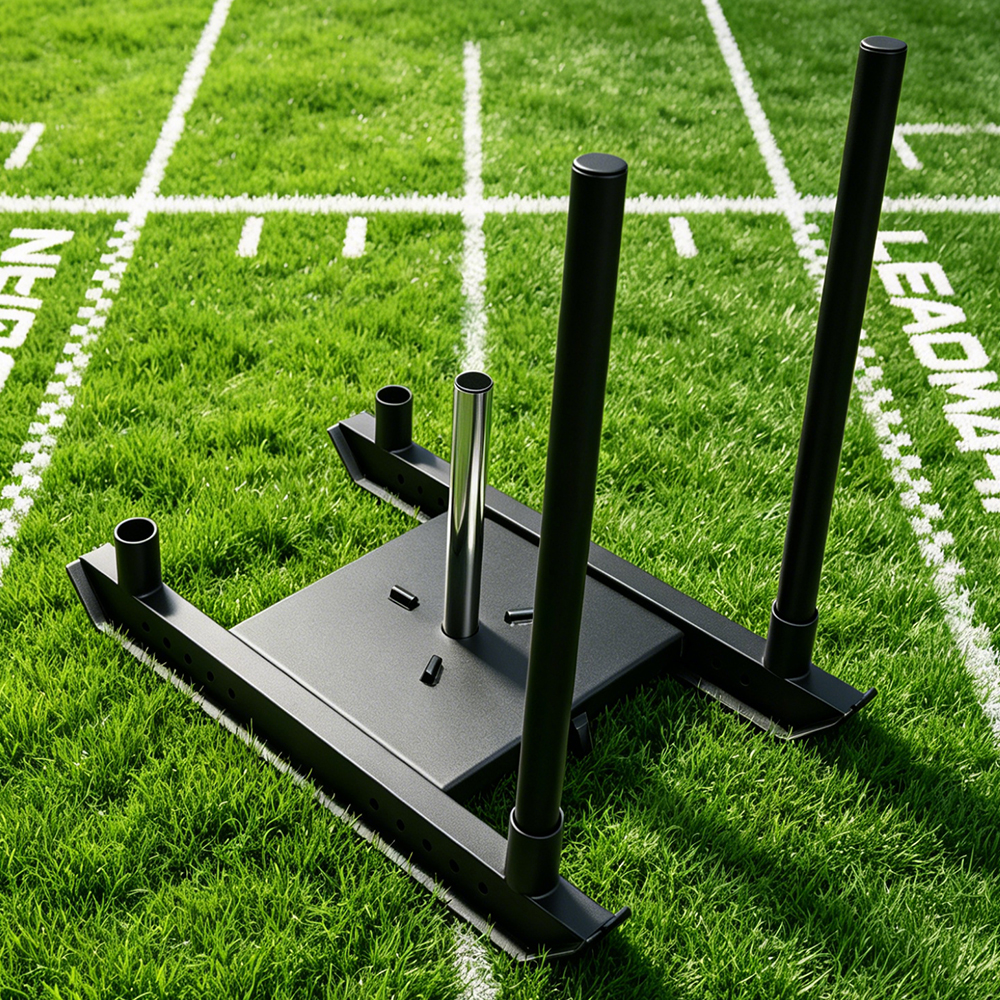

Real-World Performance Across Different Surfaces

Who Is This Sled For?

• Commercial Gyms: Need a high-frequency sled that can withstand 100+ daily uses with minimal maintenance.
• University Strength & Conditioning Centers: Heavy rotation across multiple athletes and varied surface conditions require high structural redundancy.
• Private Training Studios: Multi-functional towing hitch covers multiple training modes with one piece of equipment, saving both space and budget.
• Competitive Sports Teams: Essential tool for explosive power and speed change training in football, track & field, and similar sports.
