The Smith machine is a cornerstone of the strength training area in any commercial gym. It combines the functionality of barbell training with the safety of a fixed movement path, making it suitable for a wide range of users—from beginners to advanced athletes. This article examines the equipment from four angles: structural design, core specifications, application scenarios, and procurement considerations.

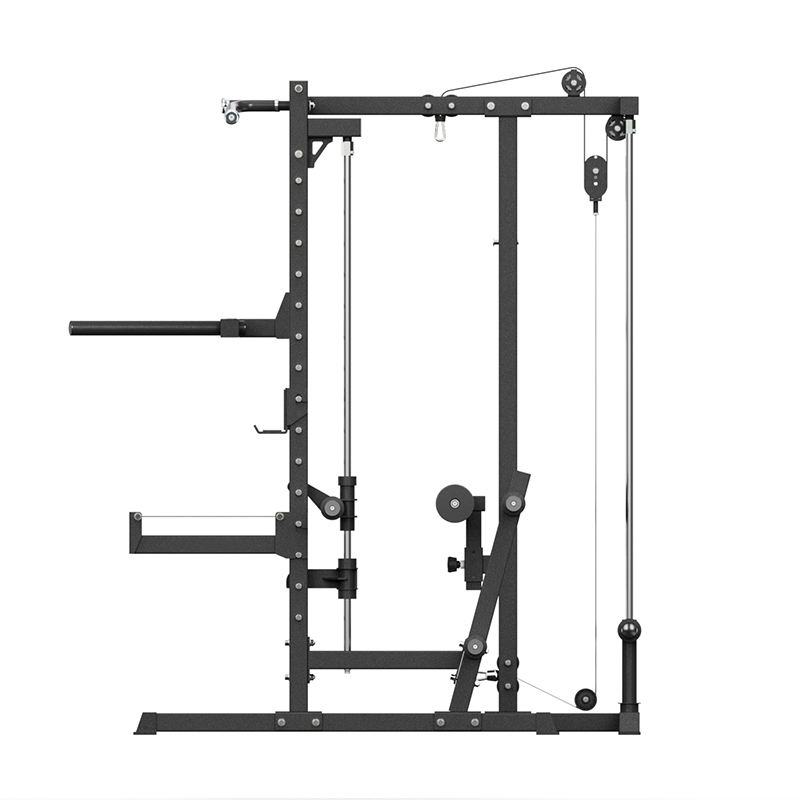

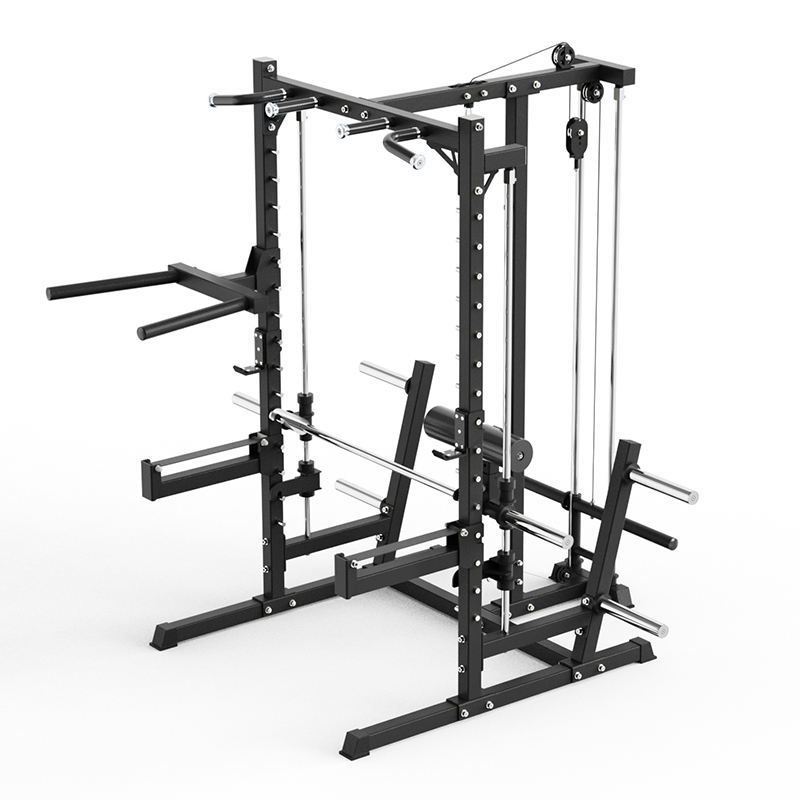

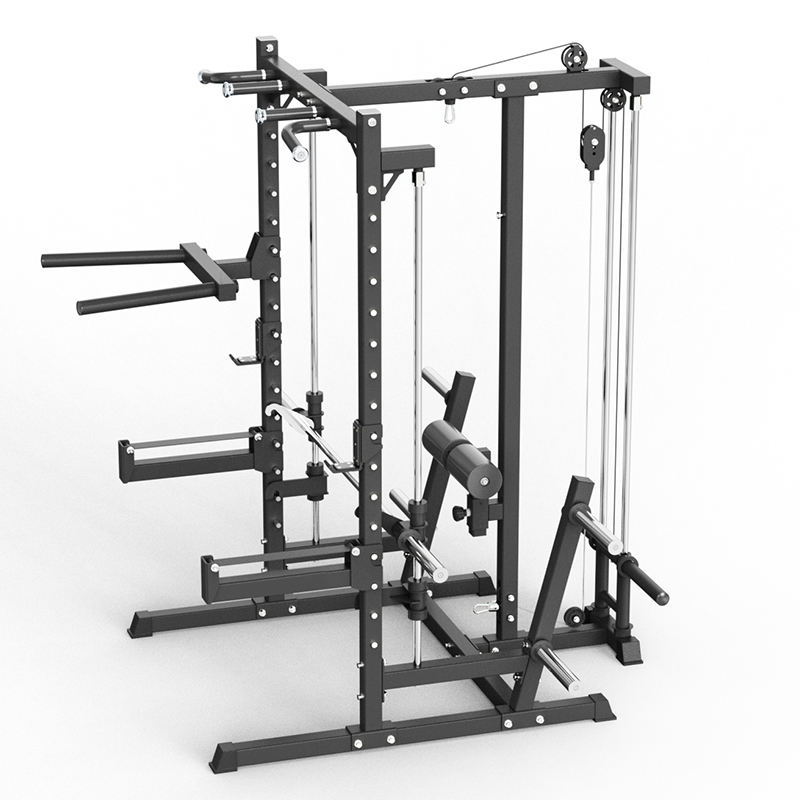

This Smith machine is built with a 60×3mm steel tube main frame. The 3mm wall thickness is the commercial-grade standard, ensuring structural stability under daily high-intensity use without deformation. The combination of tube size and wall thickness determines the rigidity foundation of the entire unit.
The overall dimensions are 1900×1630×2100 mm. These measurements fall within the standard range for commercial Smith machines, compatible with most gym strength floor layouts. The 2100 mm height clears standard commercial ceiling heights without installation issues, while the 1900 mm depth provides adequate working space for users during exercise.
Dedicated connection hardware is included for secure assembly, compatible with the KOR0609 model. The fastening system ensures stability and safety during use, reducing wobble or noise caused by loose connections.
The guide rail system is the core moving component of the Smith machine. This unit uses 20 mm solid steel guide rods. Solid rods offer superior bending strength and wear resistance compared to hollow tubes, maintaining smooth and stable bar path without developing grooves or scratches over extended use.
The carriage uses nylon bearing pulleys. Nylon bearings are self-lubricating, operate with low noise, and do not require frequent oiling. In a commercial environment, this reduces daily maintenance workload and minimizes sticking or noise caused by insufficient lubrication.
The fit precision between the guide rods and pulleys directly affects the user experience. The combination of solid rods and nylon bearings strikes a practical balance between smooth operation and long-term durability.
The Smith machine's core design feature is a fixed barbell path. The bar is constrained within the guide rail system, moving only vertically without forward, backward, or sideways drift. This design reduces the risk of injury from barbell失控during exercise.
For new members, the fixed movement path lowers the technical barrier during the learning phase. Coaches can focus on teaching proper muscle engagement without concerns about barbell balance. For athletes training heavy, the Smith machine allows heavy squat or bench press work without a spotter. For rehabilitation users, the controlled movement path enables precise load and range-of-motion management.
The equipment is suitable for users of all genders and falls under the category of comprehensive full-body strength training, with particular emphasis on lower body and chest muscle groups.
The main frame is finished with powder coating. The electrostatic coating provides strong adhesion and good scratch resistance, effectively preventing rust and oxidation. Coating thickness is uniform with complete edge coverage, reducing the risk of early corrosion.
Powder coating is a mature and widely used surface treatment process in commercial fitness equipment. Proper coating can significantly extend the cosmetic lifespan of equipment in humid or high-traffic environments.
The equipment requires a stable mounting base. The solid guide rods and steel frame add considerable weight, making concrete floor installation with expansion bolts the recommended approach. If the facility floor does not permit drilling, the equipment's weight and stability should be evaluated to determine whether free-standing use is safe.
In gym layouts, the Smith machine is typically placed against a wall in the strength training area to accommodate rear or side weight stack clearance. A minimum 1 meter of clearance around the unit is recommended for plate loading and user movement.
Facilities with ceiling heights near or below the equipment height should confirm clearance before installation.
The Smith machine is a significant capital investment for any commercial gym. Several points merit attention during procurement.
The weight stack configuration should be clearly understood. What is the total stack weight and increment size? What material are the weight plates—cast iron or other? Does the unit include a safety shroud covering the weight stack? These factors directly affect user experience and safety.
Guide rail maintenance requirements should be clarified. What is the recommended maintenance schedule for the solid guide rods and nylon bearings? Are pulleys or rail wear checks needed periodically? Understanding maintenance needs upfront helps plan future service schedules.
Accessory compatibility should also be confirmed. Does the unit come with J-hooks, safety spotter arms, and other accessories? Are the accessory load ratings matched to the equipment capacity? Missing or underspec accessories compromise the unit's functional completeness.
The Smith machine is among the most frequently used equipment in the strength training area. Its durability and safety directly affect member experience and facility operating costs. The 60×3mm main frame, combined with 20mm solid guide rods and nylon bearing pulleys, provides the structural strength and durability required for commercial environments.
Beyond equipment specifications, procurement decisions should also consider installation services and parts availability to ensure smooth deployment and long-term maintainability.
| Specification Category | Technical Details |
|---|---|
| Model | Smith Machine Rack |
| Material | Steel (60×3mm tube) |
| Guide Rod | 20mm solid steel |
| Pulley Material | Nylon bearing |
| Dimensions (L×W×H) | 1900×1630×2100 mm |
| Color | Customizable |
| Logo | Customizable |
| Packaging | Carton |
| OEM Service | Available |
