Four-Tier Storage with Wear-Resistant Lunar Trays — High-Density Dumbbell Organization for Commercial Gyms and Personal Training Studios.

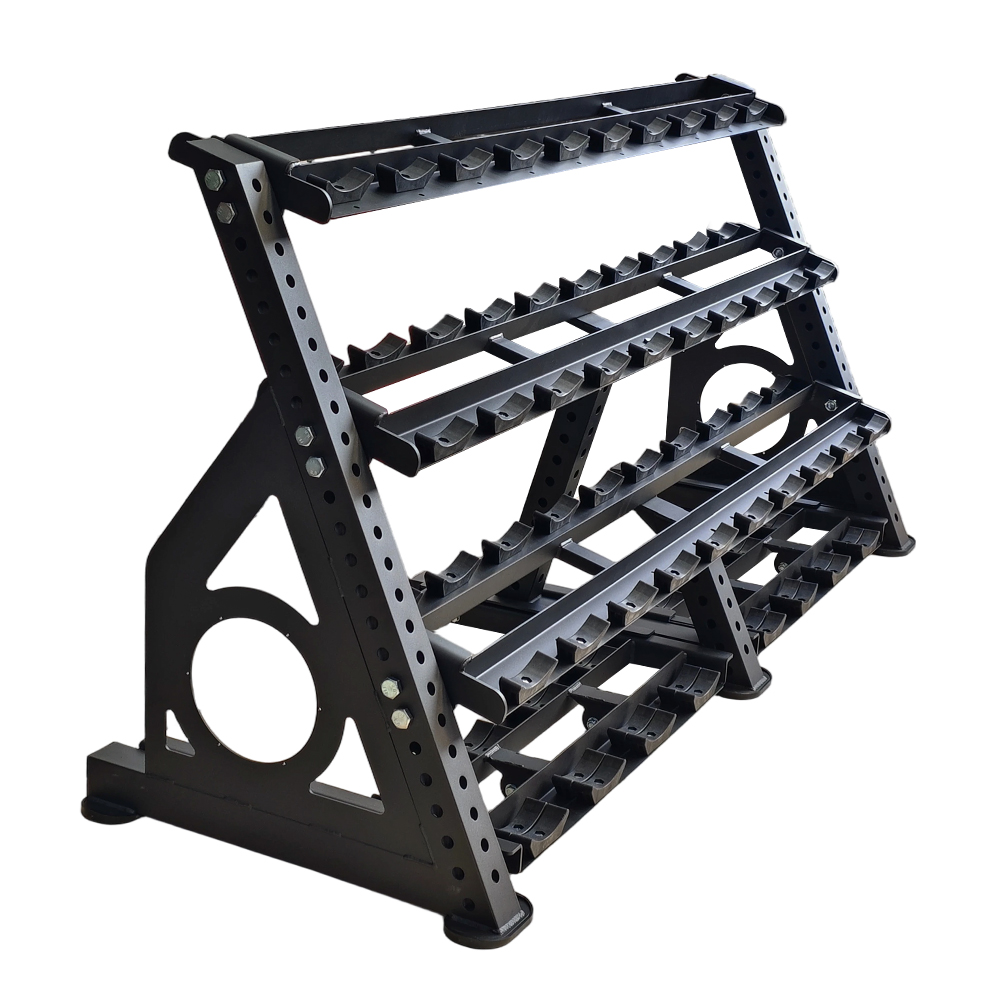

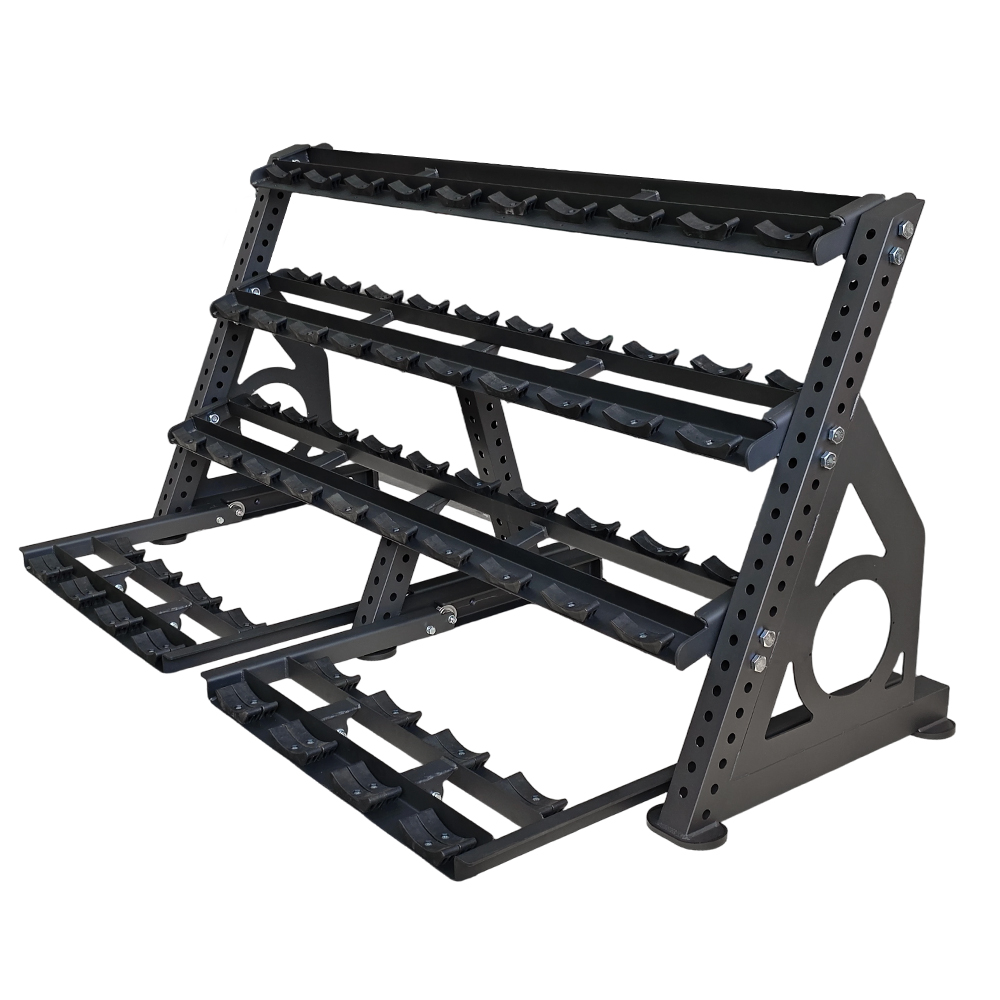

This 4-layer commercial dumbbell rack is engineered for commercial gyms, personal training studios, and high-end home training spaces that need organized, accessible dumbbell storage. The main frame is constructed from 75×75×3mm stainless steel tubing, reinforced with diagonal bracing to deliver reliable load capacity and long-term stability. The four-tier stepped layout increases storage density within a compact footprint, accommodating dumbbells from 2.5kg to 25kg while keeping the training floor organized and easy to navigate.
In a commercial setting, a dumbbell rack is more than a storage accessory. It directly affects training floor traffic, equipment safety, and visual order. A well-designed rack lets members find the weight they need quickly, reduces time spent searching and carrying, and lowers the risk of trip hazards caused by dumbbells left on the floor. This four-tier rack is structured around those practical requirements, balancing capacity, stability, and ease of access.

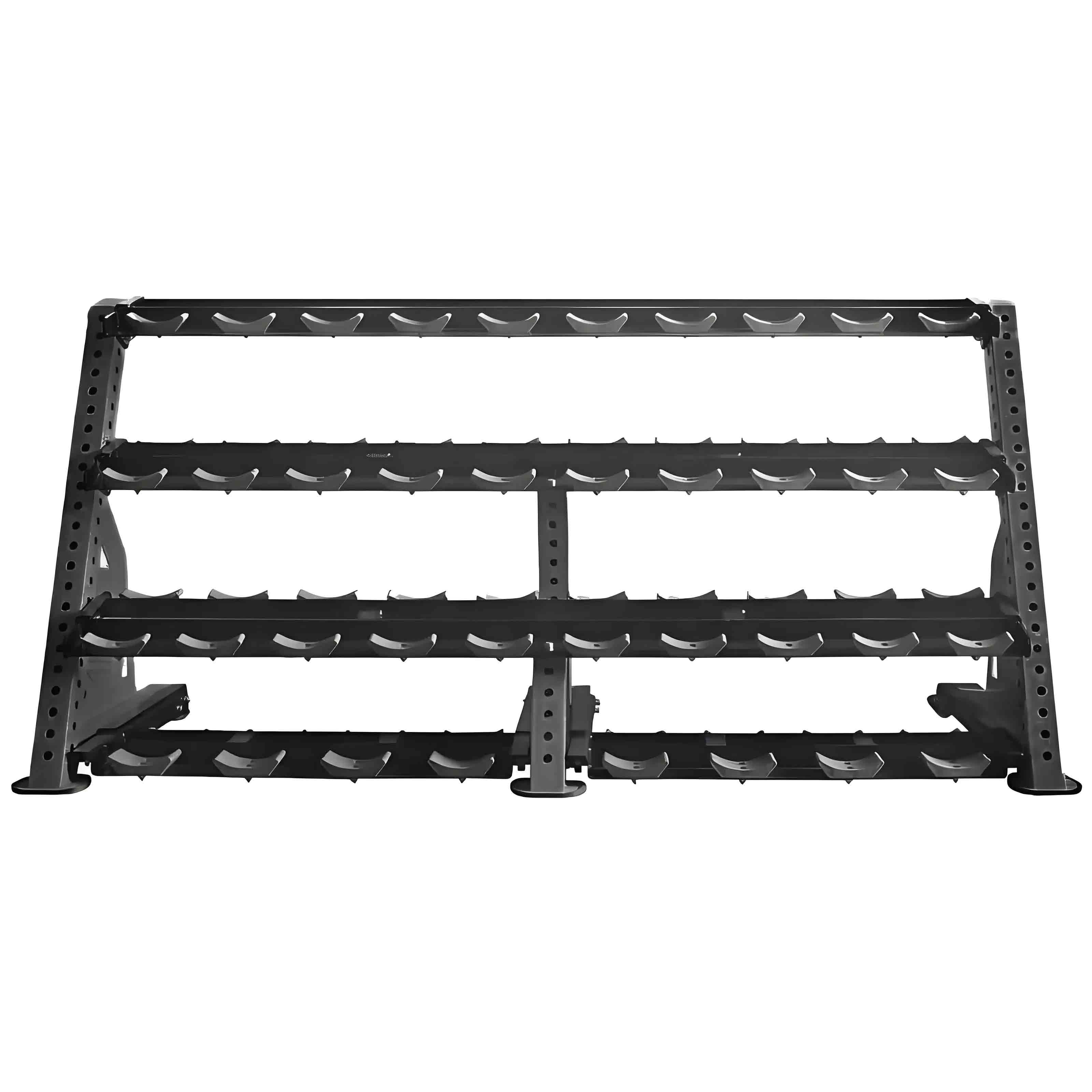

Compared with common three-tier dumbbell racks, this unit uses a four-tier structure with an independent tray on each level. Product imagery indicates that, within the same footprint, the four-tier design can hold approximately 4 additional pairs of dumbbells, improving space utilization. For gyms with larger dumbbell sets but limited floor area, this vertical expansion is more efficient than adding a second rack.
The four-tier layout also supports weight-based zoning. Lighter dumbbells can be placed on the upper tiers and heavier ones on the lower tiers, so members do not need to bend or search when selecting a weight. This improves training flow and reduces congestion in busy commercial gyms, particularly during peak hours.
Each tier uses a lunar-shaped (curved) tray design. When a dumbbell is placed on the tray, it settles naturally into the groove and does not roll or slide. The tray surface is treated for wear resistance, reducing direct friction between the dumbbell and the rack, which helps preserve both the dumbbell handles and the rack's finish. Tray edges are also processed to protect hands and dumbbell surfaces during loading and unloading.
The lunar tray also provides consistent positioning. Dumbbells rest in a fixed location after placement, so they do not shift from minor impacts — a practical advantage in high-traffic commercial environments. Spacing between trays is designed so adjacent dumbbells do not interfere with each other during retrieval.
Each dumbbell tray is secured with 4mm thick edge tubing, which increases the load-bearing contact area between the tray and the main frame. This structural reinforcement keeps trays from deforming or sagging under heavy dumbbell loads and ensures dumbbells remain securely in place. In commercial settings where equipment is loaded and unloaded frequently, this detail directly affects day-to-day safety.
From a structural standpoint, tray capacity depends not only on material thickness but also on how the tray connects to the main frame. The 4mm edge tubing distributes the weight of the dumbbells more evenly across the frame, avoiding localized stress concentrations that could otherwise cause tray deformation or weld cracking. This is one of the key design elements that allows the rack to remain stable under heavy, repeated loading.
The side or rear of the frame includes a knurled hanging rail area, which can hold additional accessories or spare dumbbells to further extend storage capacity. The knurled surface increases friction and reduces the risk of hanging items slipping off.
For personal training studios or compact training areas, this additional rail provides extra storage flexibility. Resistance bands, handles, and jump ropes can be hung in one place instead of scattered across the floor, keeping the training area tidy and reducing the chance of lost accessories.
The frame supports custom color options, allowing the rack to match the overall visual style of a facility. Combined with custom logo branding, this helps unify equipment and venue identity. For gym chains and personal training studios, this supports brand recognition across locations.
Color choice in commercial equipment is not only aesthetic — it also affects daily maintenance. Darker frames tend to hide dirt more effectively, while lighter frames appear cleaner in well-lit spaces. Buyers can factor in lighting conditions and cleaning frequency when selecting a finish.
| Item | Data |
|---|---|
| Product Name | 4-Layer Dumbbell Rack |
| Tiers | 4 layers |
| Color | Custom color |
| Material | Stainless steel |
| Tube Specification | 75×75×3mm |
| Dumbbell Compatibility | 2.5kg – 25kg |
| Tray Type | Lunar-shaped wear-resistant tray |
| Tray Reinforcement | 4mm thick edge tubing |
| Usage Scenario | Commercial gym, personal training studio, high-end home gym |
Upgrading a dumbbell rack from three tiers to four involves more than simply adding a layer — it requires coordinated adjustments to structure, load capacity, and training flow. A common limitation of three-tier racks is insufficient capacity: once dumbbell count increases, a second rack becomes necessary, consuming additional floor space. A four-tier rack increases storage density within the same footprint, reducing the floor area required for the dumbbell zone.
Adding a tier also introduces challenges: whether tier spacing is reasonable, whether the upper tier is difficult to reach, and whether overall stability is maintained. This rack's four-tier layout uses height allocation that balances retrieval convenience with storage density. The reinforced tubing and diagonal bracing provide structural support for a fully loaded four-tier configuration, ensuring that the added capacity does not come at the cost of stability.
This four-tier dumbbell rack suits commercial gyms with larger dumbbell sets that need centralized storage, as well as personal training studios with limited space but a full dumbbell range. Before purchasing, confirm the following:
In high-frequency commercial environments, a dumbbell rack requires basic routine maintenance to remain in good condition. Periodically check the connections of the tray edge tubing for looseness, especially after extended periods of heavy loading. If the lunar tray surface shows visible wear or scratches, wipe it clean with a soft cloth; avoid corrosive cleaning agents that could damage the wear-resistant layer. For custom color-coated frames, use neutral cleaners and soft cloths to preserve the finish.
Good usage habits also extend the rack's service life. Place dumbbells down gently rather than dropping them from height onto the trays. Keep dumbbells organized by weight tier to avoid localized overloading from mixed placement. These small habits may seem minor in a commercial setting, but over time they have a clear impact on equipment lifespan and training floor safety.
| Specification Category | Technical Details |
|---|---|
| Product Type | 4-layer commercial dumbbell rack |
| Tiers | 4 layers |
| Frame Material | Stainless steel |
| Tube Specification | 75×75×3mm |
| Tray Reinforcement | 4mm thick edge tubing |
| Tray Design | Lunar-shaped, wear-resistant, anti-roll positioning |
| Dumbbell Compatibility | 2.5kg – 25kg |
| Additional Storage | Knurled hanging rail for accessories or spare dumbbells |
| Color | Custom color available |
| Usage Scenario | Commercial gym, personal training studio, high-end home gym |
| Support | Comprehensive professional support; subject to localized service terms |
